EL ECTRONIC 12-CHANNEL COUNTER

产品类别:药锭 胶囊数粒机

产品型号:CVC 1220C

产品介绍:

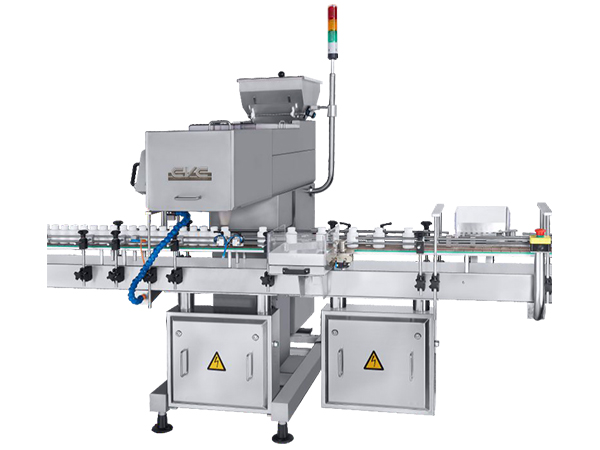

The CVC 1220C is an Electronic Channel Counter designed for high speed, highly accurate counting of tablets, capsules, and soft gels. The machine comes standard with an automatic dust compensation system, dual vacuum ports, product count verification, and reject. The 1220C can be setup to run one bottle using all 12 channels. Options include hopper level control with tower Lamp, upside down bottle sensor, static eliminator bar, channel blocker, and floor loaded tablet prefeeder.

服务热线:0512-83636368

在线咨询 立即询问
  • 机台特色
  • 产品参数
  • 可用选项
STANDARD FEATURES
●12 V-shaped channels per head (tool less change over)
●Auto dust compensation and dual dust extraction ports
●Powered height adjustment and track- ful/empty sensors
●2.83M-motorized single lane sanitary conveyor (single head)
●4.95M-motorized dual lane sanitary conveyor (dual head)
●Rejection System
●Memory capacity for up to 1000 jobs (*Requires Touch Screen controller)
●21CFR Part 11 Compliant
CVC 1220C Technical Specifications
Speed Up to 55 bpm on a count of 100 products
Hopper Capacity 30 L
Bottle Height 1½" to 7¾” (38mm-197mm)
Bottle Diameter ¾” to 4" (19mm-100mm)
Power Source 220V, 50/60 Hz, Single Phase
Power Consumption 4 Amp
Air Pressure Minimum 87 psi (ISO 8573-1)
Air Consumption 7 cfm (200 L/sq. cm)
Machine Dimensions 5'-10" x 2'-3" x 6'-2" (1776mm x 680mm x 1870mm) (L x W x H)
AVAIL ABLE OPTIONS
●Channel blocker
●Container upside down or fallen sensor
●Floor loaded pre-feeder with integratedcontrols
●Hopper level control system with towerlamp
●Industrial PC, Windows 10
●Static eliminator bar
●Dual counting heads are available
●Pre-feeding system
●Customized vibratory plates
