ELECTRONIC 1 6-CHANNEL COUNTER

产品类别:药锭 胶囊数粒机

产品型号:CVC 16201 CVC 1620-2

产品介绍:

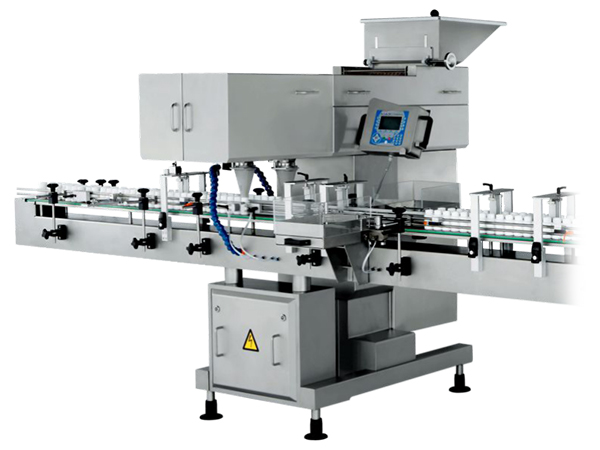

The CVC 1620 Electronic Channel Counter is designed for high speed, highly accurate counting of tablets, capsules, and soft gels. The machine comes standard with an automatic dust compensation system, dual vacuum ports, product count verification, and reject. The 1620 can be setup to run one bottle using all 16 channels or [two bottles using 8 channels for each bottle. Options include touch screen industrial PC, hopper level control with tower Lamp, upside down bottle sensor, static eliminator bar, channel blocker, and floor loaded pre-feeder.

服务热线:0512-83636368

在线咨询 立即询问
  • 机台特色
  • 产品参数
  • 可用选项
STANDARD FEATURES
●16 V-Shaped Channels per head, tool less
change over
●Auto Dust Compensation
●Dual Dust Extraction Ports
●Powered Height Adjustment
●Track Full / Track Empty Sensors
●2.83M-Motorized Sanitary Conveyor
●Single or Double Bottle Discharge
●Rejection System
●Memory capacity for up to 1000 jobs(*Requires Touch Screen controller)
●Stainless Steel Construction
●21CFR Part 11 Compliant
CVC 1620 / 1620-2 Technical Specifications
Capacity Single Bottle Discharge: up to 70 bpm on a count of 100 products.
Bottle Diameter ¾" to 4" (19mm - 100mm)
Product Width (Dia.) ⅛" to ¾" (3mm - 20mm)
Product Length ⅛" to 1-⅛" (3mm - 30mm)
Hopper Capacity 30 L
Bottle Height 2" to 7¾” (50mm-197mm)
Power Source 220V, 50/60 Hz, Single Phase
Power Consumption 6 Amp
Air Pressure Minimum 87 psi (ISO 8573-1)
Air Consumption 7 cfm (200 L/sq. cm)
Machine Dimensions 6'-6" x 2'-3" x 6'-1" (1970mm x 680mm x 1851mm) (L x W x H)
AVAILABLE OPTIONS
●Channel blocker
●Container upside down or fallen sensor
●Floor loaded pre-feeder with integrated controls
●Hopper level control system with tower lamp
●Industrial PC, Windows 10
●Static eliminator bar
●Dual counting heads are available
