INLINE CAPPER

产品类别：理盖旋盖机

产品型号：CVC 1205

产品介绍：

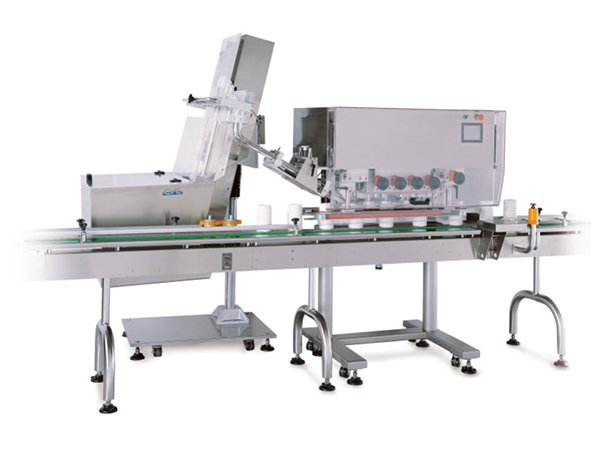

The CVC 1205 Capper is a very flexible machine designed to apply and tighten screw-on caps onto containers at rates of up to 120 bottles per minute. The CVC 1205 is Siemens PLC controlled. Options include tower lamp, hopper |level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.

服务热线：0512-83636368

在线咨询立即询问

机台特色
产品参数
可用选项

STANDARD FEATURES
●PLC Controlled
●Memory capacity for 10 jobs
●Cap tightening station with 3 sets ofspindles
●9.1 cu ft. integrated cap hopper elevator
●ISO 9001:2000 certified

CVC 1205 Technical Speciﬁcations
Speed	Up to 120 Bottles per Minute(BPM)
Cap Type	Plastic screw and CRC
Cap Height	½” to ¾” (13mm - 19mm)
Cap Diameter	1” to 4 ¼” (25mm - 108mm)
Bottle Height	2" to 8" (51mm to 203mm)
Bottle Diameter	1-¼” to 4 ½" (32mm - 114 mm) (maximum 7½” bottle diameter on a 6" wide conveyor)
Bottle Body Height	2" (51mm) below the shoulder
Power Source	220V, 50/60 Hz, Single Phase
Power Consumption	7.5 Amp
Air Pressure	Minimum 85 psi (ISO 8573-1)
Air Consumption	15-20 cfm
Machine Dimensions	5'-3" x 3'-8" x 7'-5" (1591mm x 1105mm x 2264mm) (L x W x H)
Machine Weigh	926 lbs. (420kg)
Hopper Weight	397 lbs. (180kg)
Noise Level	78 dB

AVAIL ABLE OPTIONS
●Motorized sanitary conveyor (6" widebelt available)
●Tower lamp, hopper level control
●Cap inspection package (level cap, nocap, foil presence)
●Rejection system, reject confirmation
●Dual-belt gripping system
●21 CFR Part 11 License
