SHRINK BUNDLER & HEAT TUNNEL
产品类别：装盒包装机
产品型号：CVC 1661 / CVC 1651
产品介绍：

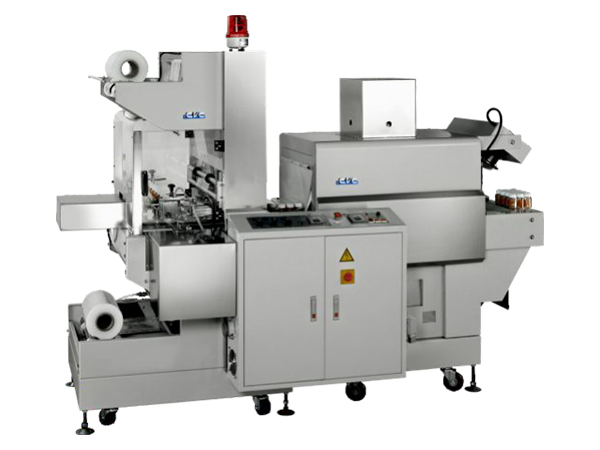

The CVC 1661/1651 Shrink Bundler & Heat Tunnel is a user friendly, compact machine designed to shrink bundle small and medium sized products. Machine options include multiple in-feed configurations and a single or double discharge depending upon rate requirements. The 1650/1651 is an ideal machine for the Nutraceutical, Pharmaceutical, Food and Beverage Markets.
• Built to cGMP Standards
• Painted Steel or Stainless Steel
Construction
• Economical Value
• Quick & Easy Change Over
服务热线：0512-83636368
在线咨询
立即询问
STANDARD FEATURES
• Painted Steel or Stainless Steel onstruction
• Single, indexing product loader and 2-Sided Sealer
• Integrated Heat Shrink Tunnel
• Quick product size changeover
• Machine on casters for ease of movement
• Light, compact design
• Rate: Dependent upon bottle matrix
| CVC 1661 Technical Specifications |
| Speed | Up to 100 Bottles per Minute(BPM) |
| Single-Bundle Loader 1 ⅛" to 4 ⅜" (30mm - 110mm) |
| Max width: | 16” (410mm) |
| Max length: | 14” (355mm) |
| Max height: | 8 ¾" (222mm) |
| Two-Bundle Loader |
| Max width: | 11 ½” (292mm) |
| Max length: | 9 ¾" (247mm) |
| Max height: | 8 ¾" (222mm) |
| Film Roll Specs: |
| Single-Bundle Loader |
| Max roll width: | 20 ½” (520mm) |
| Two-Bundle Loader |
| Max roll width: | 11” (279mm) |
| Max roll outer diameter: | 11 ½” (292mm) |
| Power Source | 220V, 50/60 Hz, 3 Phase |
| Power Consumption | 50-75 AMP |
| Air Pressure | Minimum 87 psi (ISO 8573-1) |
| Air Volume | 280L (Plant air must be dry and clean) |
AVAILABLE OPTIONS
• Product Change Part
• Variable Speed Drive for In-feed conveyor
• 1.0M Outlet Gravity Roller Conveyor, SUS 304 Stainless
