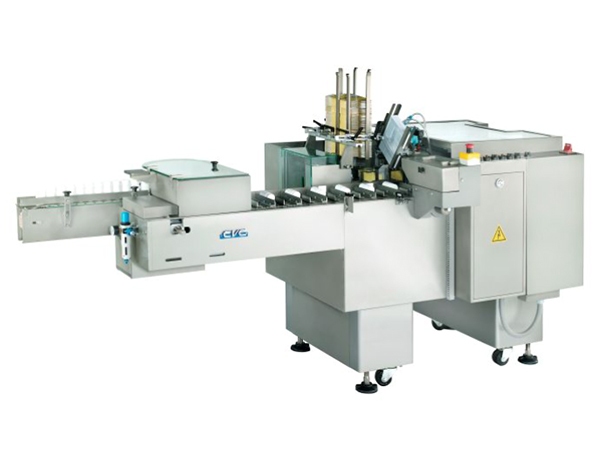

AUTOMATIC CARTONER

产品类别:装盒包装机

产品型号:CVC 1600

产品介绍:
The CVC1600 Automatic Horizontal Cartoner is a compact, intermittent motion machine designed to form, load, and close various types of cartons. The 1600 is adaptable with standard assemblies for running bottles, tubes, or blister cards. Available options include Leaflet insertion and lot/date code embossing on the carton flap. The base machine is designed to run tuck closures but glue closure options are available. The 1600 can be run stand alone or integrated as part of an automated packaging line.

服务热线:0512-83636368

在线咨询 立即询问
  • 机台特色
  • 产品参数
  • 可用选项
• Stainless Steel Construction
• Flexible Changeover
• Adjustable Bucket Style Conveyor
• Manual or Auto Loading
• Tuck Closures
• PLC Control
• Touchscreen HMI
CVC 1600 Technical Specifications
Speed Up to 60 Bottles per Minute(BPM)
Carton Height ¾" to 2 ¾" (19mm - 70mm)
Carton Length 2" to 8 ½" (50mm - 216mm)
Carton Width ¾" to 4" (19mm - 101mm)
Leaflet Width ¾" to 1 ½" (19mm - 38mm)
Leaflet Length 2 ¾" to 8 ¼" (70mm - 209mm)
Power Source 220V, 50/60 Hz, Single Phase
Power Consumption 7 AMP
Air Pressure Minimum 87 psi (ISO 8573-1)
Air Volume 1 cfm (Plant air must be dry and clean)
Air Consumption 7 cfm (200 L/sq. cm)
Machine Dimenslons D 3'-8" x 2'-2" x 6'-11"
(1104mm x 650mm x 2090mm)
(L x W x H)
AVAILABLE OPTIONS
• Glue closure (Nordson)
• In-feed/out-feed conveyor
• Leaflet insertion
• Lot/date code embossing on carton flap
• SIEMENS PLC control upgrade
