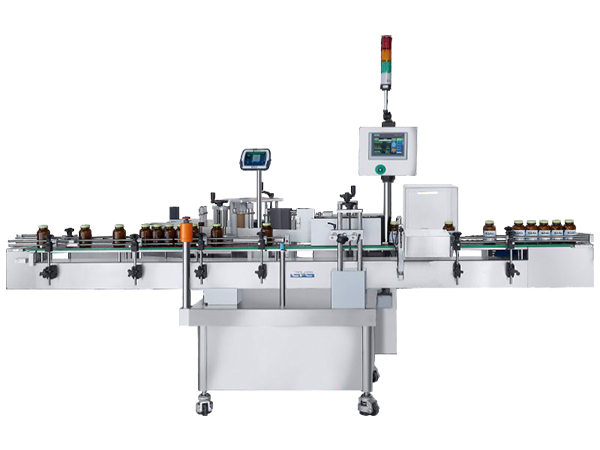

HIGH SPEED WRAP LABELER

产品类别:贴标套标机

产品型号:CVC 302

产品介绍:
The CVC 302 High Speed Wrap Labeler is built to automatically apply pressure sensitive labels onto round containers at up to 200 bottles per minute. The 302 is servo motor controlled, comes standard with a touch screen HMI, and can be ordered with various inspection options including bar code verification, vision, and missing label detection. The 302 is an ideal machine for contract packagers and manufacturers serving the pharmaceutical, nutraceutical, and food markets.
The CVC 302 can run stand alone or integrated into a full packaging line.

服务热线:0512-83636368

在线咨询 立即询问
  • 机台特色
  • 产品参数
  • 可用选项
STANDARD FEATURES
• Self-Set Auto Adjusting Control System
• Stainless Steel Frame on lockable casters
• Stainless Steel sanitary bed conveyor with 4" wide ground down table top chain.
• Touchscreen HMI
• Label head with up to ± 1/32" accuracy (*bottle dependent)
• Integrated Wrap Station
• Servo motor with PLC controls
• Adjustable Tilt for Tapered Bottles
• Label Sensor for Paper or Opaque Labels
• Product Sensor w/ Opaque & Clear Bottle Mode
• Variable Speed Separator Wheel
CVC 302 Technical Specifications
Speed Up to 150 Bottles per Minute (BPM)
Bottle Height 1" to 12" (25mm - 305mm)
Bottle Diameter 1" to 7" (25mm - 178mm)
dependent on conveyor width
Label Width / Height 3/8" to 7" (10mm - 178mm)
dependent on label head type
Label Length ½" to 12" (13mm - 305mm)
Label Roll Max 16" (356mm) outside diameter with 3" core
Dispense Speed Max 75 meters / min.
Conveyor Width Standard 4" (also available in 6")
Conveyor Length Standard 121" (also available in 94" sanitary)
Conveyor Bed Height Standard 36" (+/- 2")
Power 220V, 50/60 Hz, Single Phase, 6 Amp
Air Pressure Minimum 85 psi (ISO 8573-1)
Air Consumption 4 cfm (for optional reject and Lot/Date printer)
Machine Weight 350 kg
AVAILABLE OPTIONS
• Hot Stamp (Lot/Date Coding)
• Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
• Bottle Rejection System (Air Blow or Cylinder)
• Clear Label Sensor • Custom Wrap Belts • Feed Screw
• Infeed and Outfeed Conveyor Extensions
• Laser Bar Code Verification
• Loading and Collecting Turn Tables
• Low Label Sensor (Factory Installed Only) • Missing Label Detection System (UV)
