FRONT BACK LABELER
产品类别：贴标套标机
产品型号：CVC 400
产品介绍：

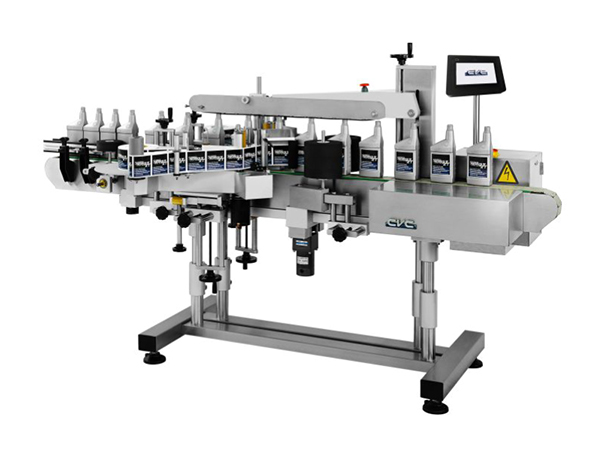

The CVC 400 Front & Back Labeler is built to automatically apply pressure sensitive labels onto the front and/or back of flat sided, oval, and some round containers. The 400 can be ordered with one or two labeling heads and has an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. The 400 is an ideal machine for contract packagers and manufacturers serving the food, nutraceutical, pharmaceutical, gas, oil, and personal care markets.
服务热线：0512-83636368
在线咨询
立即询问
STANDARD FEATURES
• Self Set Auto Adjusting Control System
• Stainless Steel Frame on lockable casters
• Stainless Steel flatbed conveyor with 4" wide table top chain (Raised sanitary bed also available)
• Touchscreen HMI
• Label head with up to ± 1/32" accuracy (* bottles / containers dependent)
• Label Sensor for Paper or Opaque Labels (Clear Label Sensor available as Option)
• Product Sensor with Opaque and Clear Bottle Mode
• Variable Speed Separator Wheel
| CVC 400 Technical Specifications |
| Speed | Up to 175 Bottles per Minute (BPM) |
| Bottle Height | Configurable from 2" to 16" (51mm - 406mm) |
| Bottle Diameter | Configurable from ½" to 6 ¼" (13mm - 159mm) dependent on conveyor width |
| Label Width / Height | Configurable from ⅜" to 9" (16mm - 229mm) dependent on label head type |
| Label Length | ¼” to 12" (16mm - 305mm) |
| Label Roll | Max 14" (356mm) outside diameter with 3" core |
| Dispense Speed | Max 23 meters / min. |
| Conveyor Width | Standard 4" (Configurable 6") |
| Conveyor Length | Standard 95 ½” |
| Conveyor Bed Height | Standard 36" (± 2") |
| Power | 110V, Single Phase, 5 Amp (220V optional) |
| Air Pressure | Minimum 85 psi (ISO 8573-1) |
| Air Consumption | 4 cfm (for optional reject and Lot/Date printer) |
| Machine Weight | 324 kg |
AVAILABLE OPTIONS
• Hot Stamp (Lot/Date Coding)
• Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
• Adjustable Tilt for Tapered Bottles
• Chain alignment
• Clear Label Sensor
• Feed Screw
• Infeed and Outfeed Conveyor Extensions
• Low Label Sensor (Factory Installed Only) • Outfeed Collection Tray
• Product Infeed Tray with Stainless Steel Insert and Paddle for easy product loading
