产品型号:CVC 220

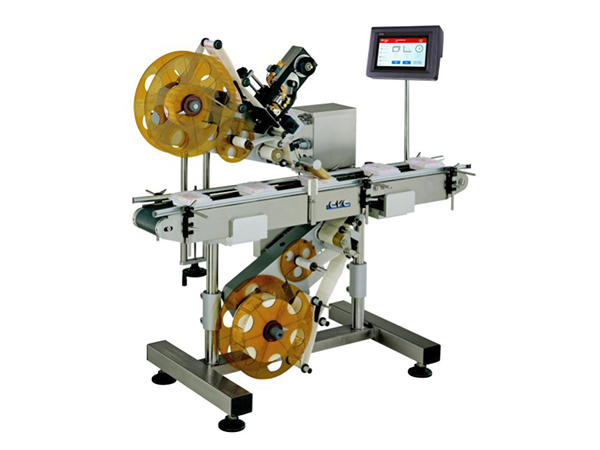

The CVC 220 Top & Bottom Labeler is built to automatically pressure sensitive labels onto two sides of flat and indented containers. The 220 comes standard with a 6” wide belt conveyor and is ideal for contract packagers and manufacturers serving the nutraceutical, food, cosmetic, personal care, and consumer electronic markets. All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.


在线咨询 立即询问
  • 机台特色
  • 产品参数
  • 可用选项
• Self-Set Auto Adjusting Control System
• Stainless Steel Frame on lockable casters • Stainless Steel flatbed conveyor, 6” wide endless green belt
• Touchscreen HMI
• Label head with up to ± 1/32” accuracy (*bottles / containers dependent)
• Label Sensor for Paper or Opaque Labels
• Capacity: up to 150 bottles per minute (BPM)
CVC 220 Technical Specifications
Speed Up to 150 Bottles per Minute (BPM)
Product Height 1" to 7¼" (25mm - 184mm)
Product Width 1" to 10" (25mm - 254mm)
dependent on conveyor width
Product Length 1" to 16" (25mm - 406mm)
Label Width / Height ⅝" to 6" (16mm - 152mm)
dependent on label head type
Label Length ⅝" to 10" (16mm - 254m)
Label Roll Max 14" (356mm) outside diameter with 3" core
Dispense Speed Max 16 meters / min.
Conveyor Width Standard 6" (Configurable 10")
Conveyor Length Standard 55 ½”
Conveyor Bed Height Standard 36" (± 2")
Power 110V, Single Phase, 5 Amp (220V optional)
Air Pressure Minimum 85 psi
Air Consumption 4 cfm (for optional reject and Lot/Date printer)
Machine Weight 175 kg
• Hot Stamp (Lot/Date Coding)
• Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
• Clear, Metallic or Color Label Sensor
• Dataflex or similar Lot/Date Code Printer • End to End transfer plates
• Infeed and Outfeed Conveyor Extensions • Separator wheel for controlled spacing
