TABLET FEEDING SYSTEMS

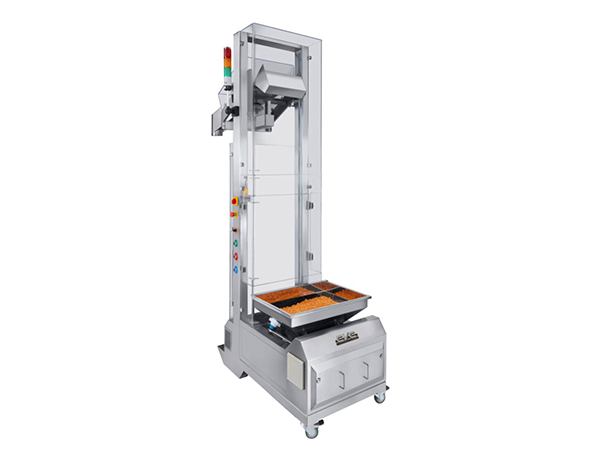

The CVC 1101E pre-feeding system is a pharmaceutical grade low profile tablet pre-feeder, designed with a streamline easy-to-clean hopper, that would accommodate both tablets and capsules. The system is a compactly designed with hopper bin lifting system to automatically elevate and deliver tablets or capsules from floor level to the hopper of the counter.
The CVC 1101E can be configured for single or dual head counting systems (depending on the counter layout).
●0n/off is automatically triggered. Timer for tablet/capsule feeding time control.
●Accompany with lower vacuum dust extraction port, dust accumulation is minimized.
●Height adjustment is electrically controlled with auto lock; hopper is hooked when power cuts.
●All contact parts are made of SS316.
●Full cGMP compliance.
|CVC 1101E Technical Speciﬁcations |
|Hopper Capacity |
|1.8 cu. ft. (50L) |
220V, 50/60 Hz, Single Phase
|Power Consumption ||750 Watts (3.4 Amps at 220V) |
|Machine Dimensions ||750 Watts (3.4 Amps at 220V) |
D 5'-9" x 2'-3" x 8'-7"
