EL ECTRONIC 16-CHANNEL COUNTER

产品类别:药锭 胶囊数粒机

产品型号:CVC 1620S

产品介绍:

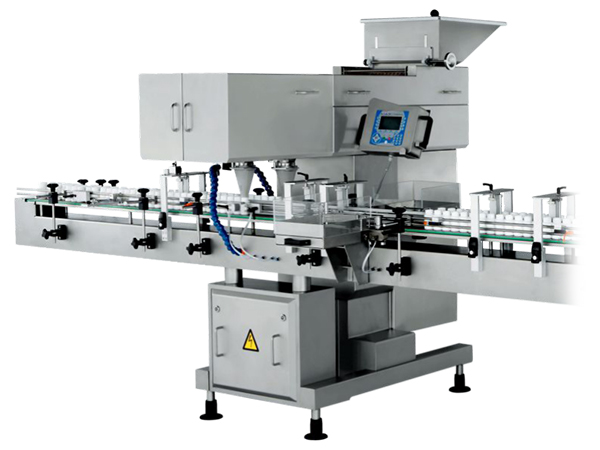

The CVC 1620S Electronic Channel Counter is designed for high speed, highly accurate counting of tablets, capsules, and soft gels. The system has been upgraded with servo-driven flaps to improve accuracy of pre-count functions. In addition, the servo system adds to longevity of the assembly and reduce the requirement to replace pneumatically driven actuators.

服务热线:0512-83636368

在线咨询 立即询问
  • 机台特色
  • 产品参数
  • 可用选项
STANDARD FEATURES
●16 V-Shaped Channels per head, tool less change over
●Auto Dust Compensation
●Dual Dust Extraction Ports
●Powered Height Adjustment
●Track Full / Track Empty Sensors
●2.83M-Motorized Sanitary Conveyor
●Single or Double Bottle Discharge
●Rejection System
●Memory capacity for up to 1000 jobs(*Requires Touch Screen cortollr)
●Stainless Steel Construction
●21CFR Part 11 Compliant FEATURE BENEFITS
●Independently contolled by servo motors
●Provide precise and absolute control
●High accuracy positioning and low-noise level
●Prolong life expectancy of drive unit
●Reduce the frequency for replacement
CVC 1620S Technical Specifications
Capacity Single Bottle Discharge: up to 70 bpm on a count of 100 products.
Bottle Diameter ¾" to 4" (19mm - 100mm)
Product Width (Dia.) ⅛" to ¾" (3mm - 20mm)
Product Length ⅛" to 1-⅛" (3mm - 30mm)
Hopper Capacity 30 L
Bottle Height 2" to 7¾” (50mm-197mm)
Power Source 220V, 50/60 Hz, Single Phase
Power Consumption 6 Amp
Air Pressure Minimum 87 psi (ISO 8573-1)
Air Consumption 7 cfm (200 L/sq. cm)
Machine Dimensions 6'-6" x 2'-3" x 6'-1" (1970mm x 680mm x 1851mm) (L x W x H)
AVAILABLE OPTIONS
●Channel blocker
●Container upside down or fallen sensor
●Floor loaded pre-eeder with integrated controls
●Hopper level control system with tower lamp
●Industrial PC, Windows 10
●Static eliminator bar
●Dual counting heads are available
