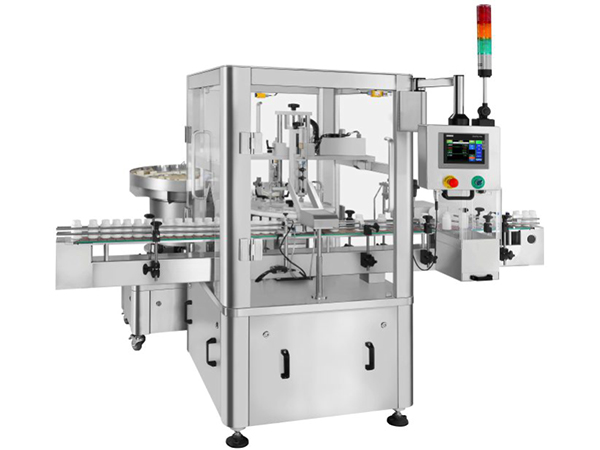

PL ASTIC FOAM STOPPER INSERTER

产品类别：棉花海棉块塞入机

产品型号：CVC 1115

产品介绍：
The CVC 1115 Plastic Foam Stopper Inserter at Ispeed of up to 70 insertions per minute. The system is designed to comply with cGMP requirements and is controlled by Siemens PLC.

服务热线：0512-83636368

在线咨询立即询问

机台特色
产品参数
可用选项

STANDARD FEATURES
●Servo motor and Siemens PLC Controlled
●No-botle no-fill
●Vibratory Feeder Bowl
●Safety guards with automatic machine stop
●Emergency Button
●Pneumatic gating with container detection
●Quick and easy change over
●cGMP compliance
●Type 304 stainless steel bin, frame,enclosure panels
●ISO 9001:2015 Certified

CVC 1115 Technical Speciﬁcations
Speed	Up to 70 Bottles per Minute(BPM) with single insertion per head
Bottle Height	1⅝" to 4¾" (40mm - 120mm)
Bottle Diameter	1⅝" to 3⅛" (40mm - 80 mm)
Neck Opening	1⅝" to 3" (40mm - 75 mm)
Foam Height	⅝" to ¾" (15mm - 20 mm)
Foam Diameter	1⅝" to 3" (40mm - 75 mm)
Power Supply	220 V/ 50 HZ/ 3 PH
Power Consumption	1950 W
Air Consumption	200 L/min (7 CFM)
Air Pressure	6 kgf/cm² (87psi) (ISO 8573-1)
Machine Dimension	8'-2" x 6'-8" x 5'-9" (2500mm x 2025mm x 1758mm) (L x W x H)
Net Weight (KGS)	1000 Kg
Noise Level	70~78 db

AVAIL ABLE OPTIONS
●Motorized sanitary conveyor (6" wide belt available)
●Missing plastic foam detection & reject system
●Tower lamp
●21 CFR Part 11 License
