BOTTLE AIR RINSER

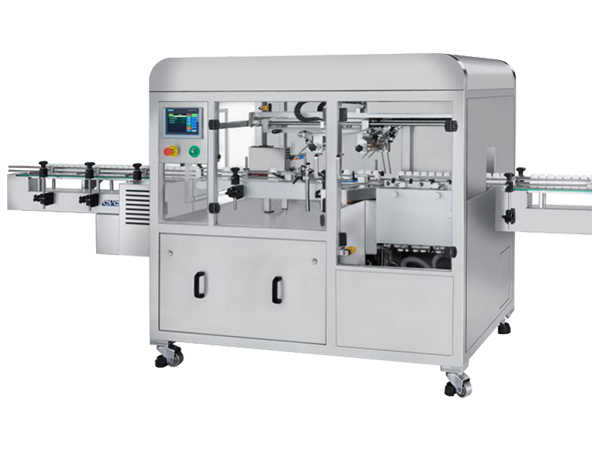

The CVC 1102 Bottle Air Rinser is Equipped withpowerful clean air jet and vacuum suction whichare combined with 180-degree inversion of bottleat speeds of up to 80 bottles per minute. TheCVC 1102 series Automatic Bottle Air Rinser arethe ideal solution for oral products lines toachieve cGMP compliance.
Different bottle sizes are easily change over with
customized bottle format change parts.
●Display touchscreen instruction for machine operation is available in two languages.
●Interlocked safety guarding.
●Bottle backlog sensor at outfeed.
●Type 304 stainless steel bin, frame,enclosure panels.
●Type 316 stainless steel contact parts.
●ISO 9001:2015 certified.
|CVC 1102 Technical Speciﬁcations |
|Type ||U4.4 |
|Speed ||Up to 80 Bottles per Minute (BPM) |
|Bottle Height ||2" to 5 ⅞" (50mm - 150mm) |
|Bottle Diameter ||1 ⅛" to 3 ⅛" (30mm - 80mm) |
|Power Source ||220V, 50 Hz, 1 Phase |
|Power Consumption ||5.5 Amp (equipped with Air Rinse & Vacuum) |
|Air Pressure ||Minimum 87 psi (ISO 8573-1) |
|Air Consumption ||1.75 cfm (50 L/min.) on standard machine without optional ionized air rinse assembly. |
|Machine Weight ||1124 lbs. (510 kg) |
|Packing Weight ||1234 lbs. (560 kg) |
|Noise Level ||78 dB |
AVAIL ABLE OPTIONS
●Static Electricity Eliminator
●Vacuum block detection assembly
●21CFR Part 11 License
